Prototypes & Small Batch Production
Ascent is well-known for its competence in developing most challenging prototypes for various industries. Our prototyping capability is attributed to our experience in the field as well as the advanced in-house facilities.
Design Capabilities
We use industry-leading modelling softwares for tooling and casting design
- Pro/E
- Delcam
- Design Interface format - IGES and STEP
Casting Simulation Capabilities for Casting Methoding
Simulation is a key to the quality of casting development. AutoCAST is used for the simulation of mould filling and the solidification simulation required for casting process. This helps in guiding improved casting quality as well as predicting the casting defects mapping of the production process.
Casting Capabilities
In-house Sand and Precision Investment casting facility:
Tool less production based on innovative 3D sand printing technology and wax master patterns for investment castings. We use vacuum induction melting and pouring technologies for Aluminum and other non-ferrous alloys.
No-bake Sand Casting Foundry
- Induction Melting Furnace
- Aluminium Melting Furnace
- No-bake Continuous Mixer/Sand Reclamation
- Cold core Box Core Shooter Core Shooter
- Equipped With LAB Spectrometer & Image analyzer
Ferrous Investment Casting Foundry
- Induction Melting Furnace
- Houses Ultra-modern Equipment
Vacuum Casting
Metal Vacuum Casting technology from Germany.
For Precision Non Ferrous Investment Casting.
Machining Capabilities
In-house most advanced 5 axis HMCs, VMCs and Turning Centers for precision machined components.

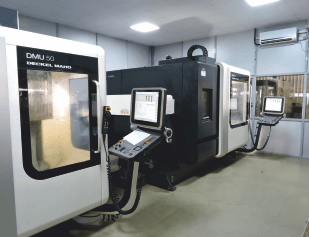

- 5 Axis Machining Center(DMG)
- HMC’s Machining Center (DMG)
- VMC’s Machining Center
Inspection Facilities
Our casting and machining are verified using CMM to your print or a direct overlay to the AD file. Casting and Machine part inspection: Spectrometer & Microscope analysis, X-Ray Inspection, Video endoscope, Leakage Testing, Inspection of Machined components 3D CMM, Portable CMM, Photometric measuring NDT.

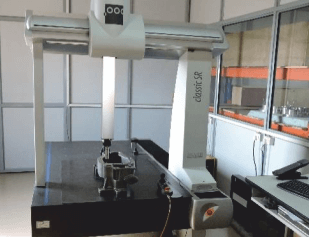

- 3D CMM : Brown and Sharpe 1500 x 900 x 800 with scanning.
- Portable CMM : Faro Gauge Plus For Casting 3D model comparison.
- Optical Spectrometer -Metal Power For Chemical composition Analysis
- Image Analyzer –Metal Power. For Microstructure analysis
- NDT inspection including ‘X-ray’ Outsourced with Suppliers
We cast following materials
- Grey Cast Iron – FG260, FG300
- Ductile Iron - 400/18, 450/12, 500/7, 600/3, 700/2, 900/2
- Ductile Iron - Si Mo – 500/7 Simo
- Austempered Ductile Iron(ADI) – Grade 800, 1000,1200,1400
- Stainless Steel - CF8, CF8M, CF8C, CF3, CF3M
- Aluminium Alloys - LM4, LM6, LM9, LM24, LM25

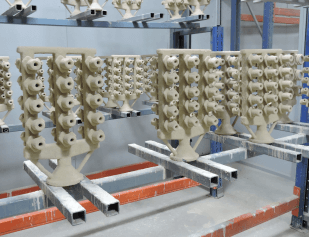

Investment Castings (Lost Wax)
We possess vast capacity to meet the regular supply of investment castings using your existing patterns or after developing the new patterns for your specific requirement. Our castings meet the stringent quality norms and can be provided in shortest possible time.
E-mail us Send us your requirement for the most competitive quote.
